 当前位置:首页 - 产品中心 - 皮革厚料缝纫设备

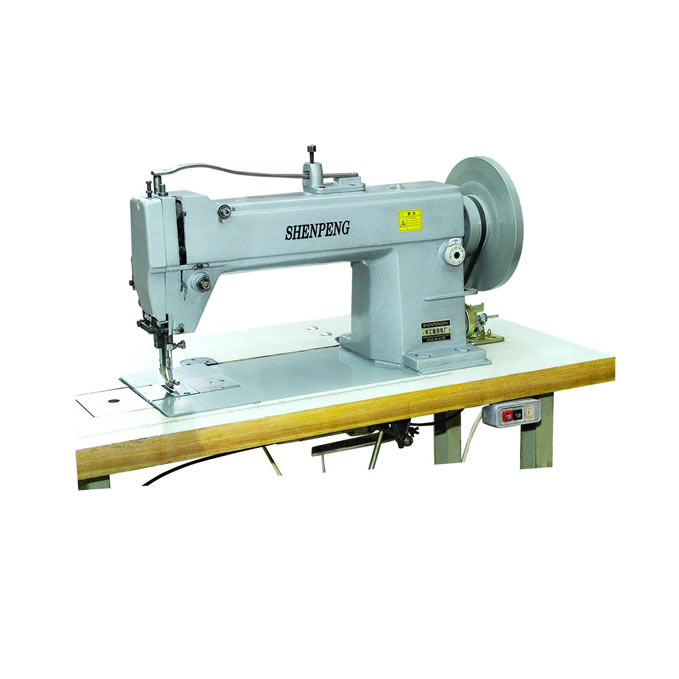

  FGC8132大型同步送料皮革厚料平缝机

产品名称:FGC8132大型同步送料皮革厚料平缝机

产品编号:006
产品型号:FGC8132
更新时间:2008.08.19
出品单位:河北申工缝纫机制造有限公司---|厚料缝纫机|皮革缝纫机|集装袋缝纫机|帆布缝纫机|编织袋缝纫机|地毯包边机|缝包机|缝纫机零件
浏览次数:
   产品详细介绍


主要特点

本机是专为缝制皮革、箱包、帆布、等各种厚料制口开发的新一代厚料缝纫机,本机操作空间大、压脚提升高、容线量大、粗细线均能缝制。本机采用连杆挑张,KRT132型超大进口旋梭勾线,形成锁式线迹,配置倒缝功能、上下同步送料机构和压脚交替提升机构。上下轴用螺旋伞齿轮传动,圆盘式针距调节机构,线迹平整,缝厚能力强,层缝性能好;倒顺缝针距误差小,机器噪音低,维护保养主便,工作效率高。是目前国内外较理想的厚料缝制设备。



主要特点

本机是专为缝制皮革、箱包、帆布、等各种厚料制口开发的新一代厚料缝纫机,本机操作空间大、压脚提升高、容线量大、粗细线均能缝制。本机采用连杆挑张,KRT132型超大进口旋梭勾线,形成锁式线迹,配置倒缝功能、上下同步送料机构和压脚交替提升机构。上下轴用螺旋伞齿轮传动,圆盘式针距调节机构,线迹平整,缝厚能力强,层缝性能好;倒顺缝针距误差小,机器噪音低,维护保养主便,工作效率高。是目前国内外较理想的厚料缝制设备。



Main characteristic



   It is the new developed sewing machine for sewing the thick cloth,such as leather,casebag and canvas etc.It has big operating space,high lifted presser and big thread containing capacity,so it could sew in both of the threadlet and thick line.It adopts the connecting to lifting up the thread and KRT132model imported superhuge rotary shuttle to hook the thread ,which formed the latching stitch; it equipped with the up and down synchronous feed mechanism with inverted sewing function and presser alternating lifting mechanism.The upper axle and lower axle are transmitted by the spiral bevel gear;it adopts the disk type needling-distance regulating mechanism.It has characteristics of smooth stitch,strong thick cloth sewing capcity,good laminate swing capacity,small error of inverted sewing stitches or right sewing stitches,low nose of machine and high operating efficiency.It is convenient for maintenance. It is the ideal sewing equipment for thick cloth in domestic and abroad at present.



技术规格   Technical Specifications

 缝纫速度                          1200/分钟(S/Min)

Speed of sewing

针距长度                          0-13mm

Length of needling distance

压脚提升                               20mm

Presser lifting

操作空间                       210×400mm

Operating space

机针型号                       7×200-230-250-300

Model of needle

电动机功率                   5501400/(缝纫机专用电机)

Power of electric motor          550W1400R/Min(Special purpose electric motor for sewing machine)

机头净重                        80kg

N.W of  head  sectiog

针杆行程                        47mm

Travel of needle pole
