 当前位置:首页 - 产品中心 - 集装袋专用缝制设备

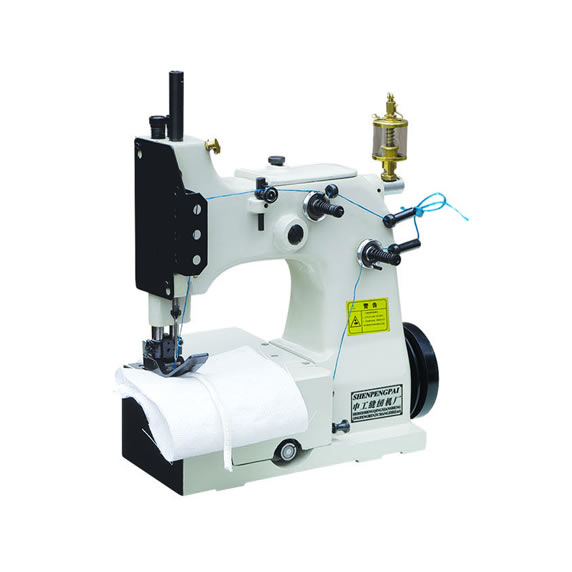

  FGK68-2集装袋链缝机

产品名称:FGK68-2集装袋链缝机

产品编号:004
产品型号:FGK68-2
更新时间:2008.08.19
出品单位:申工缝纫机
浏览次数:
   产品详细介绍

主要特点:

     FGK68-2集装袋链缝机是采用优质钢材,精心设计的集装袋链式缝纫机.它满足了客户集装袋链缝的工艺要求。本机具有缝纫速度快、噪音低、针距调节范围大、操作简单、便于保养维护等优点。对需要增加防尘条或无防尘条的缝制理想的链缝设备。



Main characteristic

  FGK68-2 Chain Sewing Machine for the Containing bag adopts hing quality steel and elaborate design technology.It could meet the needs of technology of chain sewing the containing bag for customers in domestic and abroad.It has advantages of high speed of sewing.Low noise,big regulated range of stitch distance;it is easy for operating,and convenient for maintenance.It is the most ideal chain sewing equipment for sewing in dust-proof strip or non dust-proof strip.

技术规格   Technical Specifications

 缝纫速度                   1500/分钟(S/Min.)

Speed of sewing

针脚提升                   8-15mm

Length of needling distance

压脚提升                        15mm

Presser lifting

机针型号                   GK8×250-300-400

Model of needle

电动机功率                   5501400/(缝纫机专用电机)

Power of electric motor   550W1400R/Min(Special purpose electric motor for sewing machine)

润滑方式                        半自动润滑

Lubricant style                    Semi-automatic lubricate

缝纫线迹                         双线链式

Sewing thread trace                 Double thread chain
