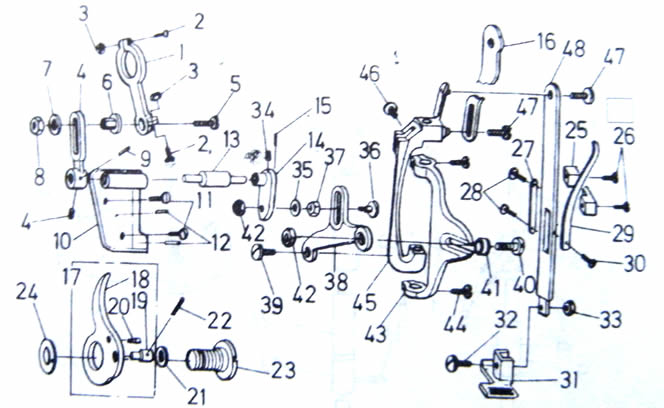

  4. Presser foot

更新时间:2008.09.09 浏览次数:


4. Presser foot

1

GH119

Differential presser large connecting rod

25

GR255

Differential pressing lever guide bracket

2

GS149

Differential presser large connecting rod screw

26

GS155

Differential pressing lever guide bracket screw

3

GL104

Differential presser large connecting rod nut

27

GR250

Differential pressing lever cushion

4

GHh120

Differential adjustable connecting rod

28

GS158

Differential pressing lever cushion screw

5

GS150

Shaft screw

29

GW108

Differential pressing lever spring

6

GL108

Adjustable nut

30

GS332

Differential pressing lever spring screw

7

GR245

Shaft screw washer

31

GM105

Differential presser

8

GL106

Locking nut

32

GS159

Differential presser screw

9

GX287

Differential adjustable connecting rod pin

33

GL104

Differential presser nut

10

GR246

Differential presser base

34

GS191

Connecting rod screw

11

GS151

Differential presser base screw

35

GR564

Shaft screw washer

12

GX111

Differential presser base pin

36

GS472

Differential small connecting rod shaft screw

13

GZ110

Differential adjustable connecting rod shaft

37

GU132

Shaft screw sleeve

14

GH121

Differential small connecting rod

38

GH122

Differential presser crank

15

GX287

Differential small connecting rod pin

39

GS171

Differential presser crank screw

16

GH123

Differential presser wrench connecting rod

40

GS154

Differential presser crank shaft screw

17

GR251/3

Differential presser wrench

41

GU126

Shaft screw sleeve

18

GR255

Differential presser wrench body

42

GL106

Shaft nut

19

GX112

Wrench connecting rod pin

43

GR248

Presser bracket

20

GX113

Wrench fixing pin

44

GS156

Presser bracket screw

21

GR253

Wrench connecting rod washer

45

GR249

Differential presser bracket

22

GX122

Wrench connecting rod split pin

46

GS155

Differential presser bracket adjustable screw

23

GS160

Wrench screw

47

GS153

Differential presser bracket screw

24

GR254

Wrench washer

48

GZ111

Differential pressing lever
